8Core Armored Figure 8 G652D Single Mode Optical Fiber Cable For Outdoor

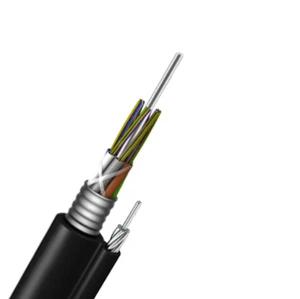

Description
1. 250μm Coloured Fiber
2. PBT loose Tube
3. Tube Filling Compound(Gel)
4. APL Moisture barrier
5. Stranded wires as the self-supporting messenger
Features
1. With good mechanical properties and temperature characteristics
2. Material of loose tube has good hydrolysis resistance and high strength
3. The loose tube is filled with special gel, which protect the optical fiber
4. Specially designed compact cable structure to effectively prevent casing from retracting
5. Anti-UV PE out sheath
6. Take the following measures to ensure the waterproof performance of the optical cable
- Single steel wire center reinforced core
- Filled with special Water-blocking material in loose tube
- Complete cable core filling
- Moisture-proof layer of plastic-coated aluminum tape (APL)
Characteristics
Good mechanical and temperature performance
1. High strength loose tube that is hydrolysis resistant
2. Special tube filling compound ensure a critical protection of fiber
3. Crush resistance and flexibility
4. PE/LSZH sheath protects cable from ultraviolet radiation
5. 100% cable core filling
Specification
 | Application : self-supporting aerial
Installation method : self-supporting aerial
Operating temperature : -40℃ ~ +70℃
Permisson bent radius
Static :10 times O.D.
Dynamic :20 times O.D.
|
| Performance | Long-term | Short-term |
| Max.Tension(N) | 3500 | 7000 |
| Max.Crushing | 300 | 1000 |
| Resistance(N/100mm2) | 30D(Dynamic) | 15D(static) |
| Storage and operating temperature | -40℃ to +70℃ |
Optical Characteristics:
| | G.652D | 50/125μm | 62.5/125μm |
| Attenuation (+20℃) | @850nm | | ≤3.0 dB/km | ≤3.0 dB/km |
| @1300nm | | ≤1.0 dB/km | ≤1.0 dB/km |
| @1310nm | ≤0.36 dB/km | | |
| @1550nm | ≤0.22 dB/km | | |
| Bandwidth (Class A) | @850nm | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | | |
Storage and use temperature: -40 °C to +70 °C.
